GLO-416 Programmer's Reference

This page describes the GLO-416's fonts and instruction set. For hookup, configuration and specifications, please see the hardware reference.

Version 2.0: The upgrade guide describes differences between v1 and v2. New instructions are included in the Escape section of this page and marked v2.

Table of Contents

Serial Communication

GLO-416s accept asynchronous serial at *9600bps, 8 data bits, no parity, 1 or more stop bit(s), often called "N81." They will accept RS-232 input, inverted TTL, or non-inverted TTL. Non-inverted TTL requires cutting the SPol jumper on the circuit board. See the hardware reference for further information.

Character Set

GLO-416s display the standard ASCII character set for character codes 32 to 127 (0x20-0x7F hex). Character codes 128-143 (0x80-0x8F hex), the last row in the chart below, are custom characters that can redefined and saved to EEPROM using Escape instructions.

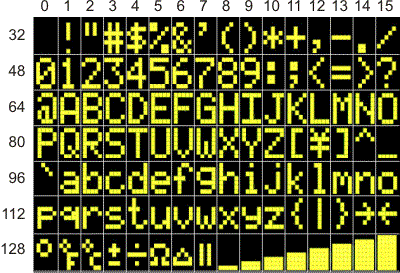

character set

Character Set (Character code= row+column)
Last row, 128-143, is the default custom-character set.

Screen Layouts

GLO-416 offers multiple font sizes, which can be freely mixed on the screen. The following screen layouts show position values for the various font sizes. Positioning (ctrl-P below) is in terms of the font-size in effect at the time. In the illustrations below, position = row + column.

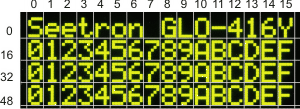

4x16 screen layout

Default 4x16 Screen Layout

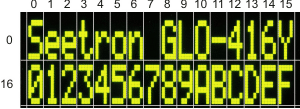

2x16 screen layout

Tall-character, 2x16 Screen Layout

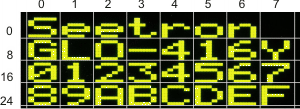

4x8 screen layout

Wide-character, 4x8 Screen Layout

2x8 screen layout

Large-character, 2x8 Screen Layout

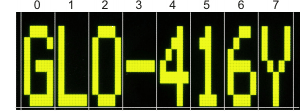

1x8 screen layout

Extra-Tall, 1x8 Screen Layout

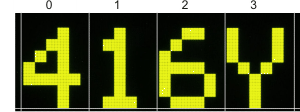

1x4 screen layout

Huge-character, 1x4 Screen Layout
(text-style numbers)

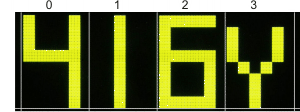

1x4 screen layout

Huge-character, 1x4 Screen Layout
(7-seg-style numbers)

Control Codes

GLO-416s understand a small set of control codes modeled on those used by our BPP, VFD, ILM, TRM and SGX products, but with OLED-specific tweaks. Here's a list of quick descriptions. Codes not listed below (e.g., Null, 0) are ignored by the display.

Items marked with » can be clicked for tips or more detail.

Home (ctrl-A) 01 dec 0x01 hex

Moves the printing position to 0, the first character of the top line. »

Select Font Size (ctrl-B) 02 dec 0x02 hex

Cycles the font size (lines x characters), 4x16→2x16→4x8→2x8→1x8→1x4... »

Set Font Size to Normal (ctrl-C) 03 dec 0x03 hex

Sets the font to the default, small size (four lines of 16 characters. »

Backspace (ctrl-H) 08 dec 0x08 hex

Backs up one character, erases that character, sets the print position to erased character's location. »

Tab (ctrl-I) 09 dec 0x09 hex

Moves the printing position to the next multiple-of-4 screen location: 0→4→8→12→16→20→24→... »

Smart Linefeed (ctrl-J) 10 dec 0x0A hex

Moves the printing position down a line. »

Vertical Tab (ctrl-K) 11 dec 0x0B hex

Moves the printing position up a line. »

Clear Screen (ctrl-L) 12 dec 0x0C hex

Clears the screen and moves the printing position to 0—the first position of the first line. »

Carriage Return (ctrl-M) 13 dec 0x0D hex

Moves to the first printing position of the next line. »

Turn On OLED driver (ctrl-N) 14 dec 0x0E hex

Turns on the OLED driver circuitry after a previous ctrl-O turned it off. »

Turn Off OLED driver (ctrl-O) 15 dec 0x0F hex

Turns off the OLED driver circuitry to save power. »

Set Printing Position (ctrl-P) 16 dec 0x10 hex

Sets the printing position according to the value of the next byte, position+64 (0x40 hex). »

Right-align Text (ctrl-R) 18 dec 0x12 hex

Displays text (usually numeric) within a field 2 to 8 characters wide. The byte that follows ctrl-R is a text number from '2' to '8' (50-56 dec, 0x32-0x38 hex) that sets the field width. The text after that will be invisibly stored until one of the following is received:

When this happens, the field will be cleared and the received text printed at the righthand end of the field. »

Set 7-Segment Big Numbers (ctrl-S) 19 dec 0x13 hex

Sets 7-segment-style bitmaps for numbers displayed at the largest font sizes, 1x8 and 1x4 (default).»

Set Text-style Big Numbers (ctrl-T) 20 dec 0x14 hex

Sets normal text patterns for numbers displayed at the largest font size.»

Escape: Start Multipart Instruction (ctrl-[) 27 dec 0x1B hex

See the Escape-code descriptions below.

Escape Instructions

These are multipart instructions that begin with the Escape character; 27 dec, 0x1B hex. Most Escape instructions affect memory: writing bitmaps to RAM to define custom characters, or storing/recalling text or character patterns to/from EEPROM.

V2.0: The new version adds Escape instructions that change the baud rate, flip the screen, reset the display, etc. See descriptions below.

Define Custom Character Pattern ESC D n B0 B1 B2 B3 B4 B5 B6 B7

Change the pattern of custom character n to the bitmap made up of bytes B0 through B7. The value n is a text number '0' to '7' (48-55 dec, 0x30-0x37 hex) specifying the custom character to be defined.

The figure below shows how the bits of bytes B0 through B7 define the shape of the custom character. The upper three bits of the pattern bytes are ignored. A tool for calculating custom-character bytes is online at seetron.com.

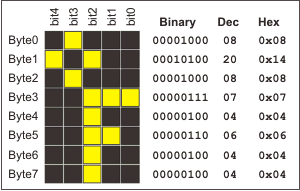

custom character scheme

Bitmap Layout for Custom Characters.

GLO-416 supports 16 custom characters, double the 8 allowed by LCDs. To maintain backward compatibility, the lower 8 characters are defined by ESC D (uppercase D; 68 dec, 0x44 hex) and the upper set by ESC d (lowercase d; 100 dec, 0x64 hex). The custom characters map to character codes 128-143 dec (0x80-0x8F hex) as shown in the character chart above.

An example: To define custom-character 3 (which maps to character code 131) to the °F pattern in the example above, you'd send the sequence of 11 bytes shown below. To define custom character 10 (maps to char code 138) instead, you would substitute 100 dec/0x64 hex (lowercase d) for 68 dec/0x44 hex (uppercase D).

  ESC D '3' B0 B1 B2 B3 B4 B5 B6 B7
Dec: 27 68 51 8 20 8 7 4 6 4 4
Hex: 0x1B 0x44 0x33 0x08 0x14 0x08 0x07 0x04 0x06 0x04 0x04

Custom Characters: GLO versus LCD

GLO-416 allows redefinition of custom characters without altering custom characters already on the screen. This is a significant change from LCD custom-character behavior. »

Recall Saved Data (text or custom characters) from EEPROM ESC E 0

Recall stored data from EEPROM. ESC E (uppercase E; 69 dec, 0x45 hex) 0 (zero; 48 dec, 0x30 hex) recalls the saved startup text to the screen. The same instruction with lowercase e (101 dec, 0x65 hex) recalls the saved custom-character set from EEPROM (without affecting the screen). »

Store Data (text or custom characters) to EEPROM ESC X 0

Store data to EEPROM. ESC X (uppercase X; 88 dec, 0x58 hex) 0 (zero; 48 dec, 0x30 hex) saves all text and instructions received since the last ctrl-L clear-screen. The same instruction with lowercase x (120 dec, 0x78 hex) saves the current custom-character set.

These instructions can be disabled in order to protect the data from accidental changes by cutting the DSU (display setup) jumper on the interface pcb.

Additional Info on ESC X 0 (Store Text)

The basic purpose of ESC X 0 is to store a string of text that will be used at startup to display a splash screen, like the default model/version screen. But ESC X 0 can store instructions too, up to a total of 48 bytes (v 1.0) or 120 bytes (v 2.0). The only instruction it will not store is clear-screen, which it uses as a start marker. Why allow embedded instructions? It lets you set defaults (e.g., font size, or initial printing position) that will be in effect as soon as the display powers up, or anytime an ESC E 0 is sent.

Set OLED Brightness ESC n

ESC n sets the brightness of the backlight in five steps from 0% to 100%. The value of n is specified by the printable numbers "0" to "4" (48-52 dec, 0x30-0x34 hex ). Sending ESC 2 (27 50 dec, 0x1B 0x32 hex) sets 50% brightness.

This instruction is available in version 2.0 (and higher).

Long Escape Instructions (Version 2.0)

Version 2.0 adds Escape instructions that reconfigure the GLO-416Y on-the-fly. To avoid accidental triggering, they use long (8-character), case-sensitive codes, prefaced by ESC ! (27 33 dec, 0x1b 0x21 hex). All of these instructions except ESC !ResetNow and ESC !FlshLock can be embedded in a startup screen for permanent-until-erased/replaced configuration. (If not embedded in a startup screen, these instructions remain in effect until the power is turned off.)

Immediate Reset ESC !ResetNow

Reset the display to initial power-on state. During reset, the GLO will be unable to receive serial data for approximately 200ms.

This instruction cannot be embedded in the startup screen.

  ESC ! R e s e t N o w
Dec: 27 33 82 101 115 101 116 78 111 119
Hex: 0x1B 0x21 0x52 0x65 0x73 0x65 0x74 0x4E 0x6F 0x77

Flip Screen ESC !FlipScrn

Flip the screen image vertically.

Setting remains in effect until next power off (unless instruction is embedded in startup screen).

  ESC ! F l i p S c r n
Dec: 27 33 70 108 105 112 83 99 114 110
Hex: 0x1B 0x21 0x46 0x6C 0x69 0x70 0x53 0x63 0x72 0x6E

Normal and flipped screen orientation are relative to the 16-pin connector at the top/left of the display:

Normal/Unflipped Flipped

Undo Flip Screen ESC !UnFlipSc

Restore normal screen orientation.

Setting remains in effect until next power off (unless instruction is embedded in startup screen).

  ESC ! U n F l i p S c
Dec: 27 33 85 110 70 108 105 112 83 99
Hex: 0x1B 0x21 0x55 0x6E 0x46 0x6C 0x69 0x70 0x53 0x63

Write-Protect Flash Memory ESC !FlshLock

Temporarily write-protect flash memory. (For permanent write-protection, cut the Dsu jumper.)

Setting remains in effect until next power off. This instruction cannot be embedded in a startup screen, because it would prevent the screen from being saved to flash.

  ESC ! F l s h L o c k
Dec: 27 33 70 108 115 104 76 111 99 107
Hex: 0x1B 0x21 0x46 0x6C 0x73 0x68 0x4C 0x6F 0x63 0x6B

Set Inline Carriage Return ESC !InlineCR

Change the carriage return (ctrl-M) behavior to move to the beginning of the current line of the display. (Default CR moves to the beginning of the next line.)

Setting remains in effect until next power off (unless instruction is embedded in startup screen).

  ESC ! I n l i n e C R
Dec: 27 33 73 110 108 105 110 101 67 82
Hex: 0x1B 0x21 0x49 0x6E 0x6C 0x69 0x6E 0x65 0x43 0x52

Set Data Rate (baud) ESC !9600_bps  ESC !19.2kbps  ESC !38.4kbps

Set the serial data rate to the specified value. Rate remains in effect until power off. At next power on, the data rate will return to default (9600) or to the rate specified by embedding one of these instructions in the startup screen.

  ESC ! 9 6 0 0 _ b p s
Dec: 27 33 57 54 48 48 95 98 112 115
Hex: 0x1B 0x21 0x39 0x36 0x30 0x30 0x5F 0x62 0x70 0x73
  ESC ! 1 9 . 2 k b p s
Dec: 27 33 49 57 46 50 107 98 112 115
Hex: 0x1B 0x21 0x31 0x39 0x2E 0x32 0x6B 0x62 0x70 0x73
  ESC ! 3 8 . 4 k b p s
Dec: 27 33 51 56 46 52 107 98 112 115
Hex: 0x1B 0x21 0x33 0x38 0x2E 0x34 0x6B 0x62 0x70 0x73
