Horizontal Bar Graphs with BPK- and BPI- LCDs

Bar graphs provide a quick visual indication of relative values like battery charge, signal strength, control setting, etc. Although alphanumeric LCDs like the BPI-216 lack the ability to plot points or draw lines, their custom characters can be used as building blocks for visually appealing bar graphs. This app note shows how, using a Parallax BASIC Stamp II as the host computer.

The principles demonstrated here can be used with any alphanumeric or graphics LCD that supports custom characters. The program included with this app note uses a couple of tricks that define the custom bar-graph characters with minimal BS2 resources (just a few bytes of program memory and no permanent RAM variables).

Horizontal Bar Graphs on Text LCDs

The simplest bar graph you can generate with an alphanumeric LCD is a row of repeating characters. For example, a series of X's could represent a quantity. On a 16-column-wide display:

x value= 1
xxxxxxxx value= 8
xxxxxxxxxxxxxxxx value=16

For a more graphical presentation, a block character could be substituted for X's. for example, on most LCDs, ASCII 255 is a 5x8-pixel black rectangle.

This approach limits the graph's resolution--the minimum change that can be depicted is 1 part in 16.

You can increase the resolution by using the LCD's set of 8 custom characters. Each character block is 5 pixels wide, so in principle you could break a 16-column display into 5 x 16 = 80 columns of pixels.

The problem here is that there are fixed, 1-pixel gaps between each character position. As a changing bar graph crosses a gap, it lurches 2 pixel spaces for a 1-unit change. This is disconcerting in dynamic bar graphs, making smooth changes appear jerky.

A nice compromise is to use every other pixel column so that each character position represents 3 units. This matches up with the gaps between character positions and creates an nifty, striped bar, as shown below. (Note that the on-screen displays in TVs universally use a similar striped bar, perhaps to emphasize changes as opposed to absolute quantity.)

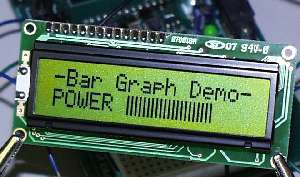

BPI-216 displaying bar graph

With 3 units per character block, a 16-column-wide LCD can depict values from 0 to 48 (assuming that the full screen width is used; in the example here it isn't).

Hookup for Demo

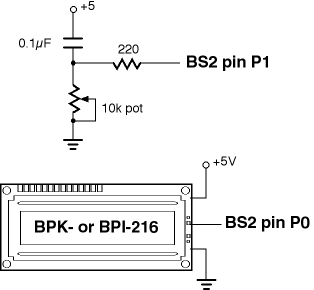

BS2/display hookup The schematic at right shows how to connect the display to the BS2 for the demo. Data for the graph comes from the pot/capacitor hookup shown. If you want to omit the pot, you may, but you will have to work out some other way to supply data to the bar-graph routine.

Running the BS2 Program

The BS2 program is listed below. Comments explain most of the mechanics of it. It makes generous use of a lesser-known features of the BS2 Serout instruction, the REP (repeat) modifier.

Within a Serout list (inside the square brackets [...]), REP causes a particular byte to be sent repeatedly. For example,

serout pin,baudmode,[REP "X" \26]

..causes 26 Xs to be sent. A couple handy aspects of REP are that..

In our bar-graph application, we divide the value to be graphed by 3 (the max number of vertical bars in a single character position), and print that number of 3-bar character blocks (|||). Then we take the remainder of division by 3 and print the appropriate bar block (| for one, or || for two). The rest of the bar-graph width gets filled with blank spaces.


' Program: BAR_BPK1.BS2 (Horizontal bar graphs, BS2/BPK/BPI-series)
' This program demonstrates how to generate horizontal bar
' graphs with the BASIC Stamp 2 controller and BPK- or BPI-
' series displays. Connect the display SER input to BS2 pin P0.
' Set BPS switch on the display for 9600-baud operation.
' Connect pot to pin P1 as shown in the schematic.

' ==BPK/BPI CONTROL CONSTANTS==========================
I       con     254     ' Instruction prefix for LCD.
LCDCLS  con     1       ' Clear-screen instruction for LCD.
CGRAM   con     64      ' Starting point of CG RAM.
LINE1   con     128     ' Beginning of line 1.
LINE2   con     192     ' Beginning of line 2.
BARPOS  con     198     ' Position: char 6 of 2nd line.
S_PIN   con     0       ' Serial output to Backpack/LCD.
N9600   con     $4054   ' 9600 baud.

' ==BAR-GRAPH CONSTANTS================================
WIDTH   con     10              ' Max width in characters of bar.
MAXBAR  con     width * 3       ' Max bar counts.
FULBAR  con     3               ' ASCII value of ||| bar.
BASBAR  con     0               ' ASCII value of 0 bar (blank).

' ==PROGRAM VARIABLES==================================
graf    var     word    ' Value to be graphed.
bars    var     byte    ' Number of full ||| bars to draw.
bal     var     byte    ' Balance left after all |||s drawn.
pad     var     byte    ' Number of spaces to pad to fill width.
balF    var     bit     ' Is a 'bal' character needed? (1=yes, 0=no).

' Note: the variables below are used only at program startup to
' initialize the bar-graph bit maps. Since they are never used
' in the main program, they are defined as aliases of the
' main-program variables. This costs nothing, and prevents
' wasting 3 bytes of RAM.
cnt     var     bars    ' Counter (0-15) for EEPROM/bit pat load.
row     var     bal     ' Row of bit pattern.
char    var     pad     ' Bit pattern read from EEPROM.

' ==DEMO PROGRAM=======================================
pause 1000                      ' Wait a second.
gosub loadBitPats               ' Load bit patterns for bars.

' Clear the LCD, print labels "-Bar Graph Demo-" on line 1 and "POWER"
' on line 2.
serout S_PIN,N9600,[I,LCDCLS,I,LINE1,"-Bar Graph Demo-",I,LINE2,"POWER"]

' Main loop--get a pot measurement, position the cursor, graph, repeat.
Again:
  gosub getPotVal                       ' Sample the pot.
  serout S_PIN,N9600,[I,BARPOS] ' Move to beginning of bar.
  gosub barGraph                        ' Display bar graph.
goto Again                              ' Do it continuously.

' ==SUBROUTINES========================================
' BARGRAPH: Take the value in 'graf' and present it as a
' horizontal bar graph from the current cursor location with a
' total width (in characters) set by the WIDTH constant. Each
' character position can represent a maximum value of 3 using
' the FULBAR character |||. The routine calculates how many full
' bars to use by dividing by 3. If there's a remainder after
' dividing by 3, the routine tacks on a partial-bar character
' ( | or ||) to represent the balance('bal'). Finally, it pads
' the remainder of the bar width with blank spaces in order to
' erase any leftovers from previous graphs.
barGraph:
  bars = (graf max MAXBAR)/3    ' One full bar for each 3 graph units.
  bal = (graf max MAXBAR) // 3  ' Bal is remainder after division by 3.
  balF = bal max 1                      ' If bal <> 0 then balF=1.
  pad = WIDTH - (bars+balF)     ' Number of spaces to fill bar width.
  serout S_PIN,N9600,[rep FULBAR \bars, rep (bal+BASBAR) \balF, rep " " \pad]
return

' GETPOTVAL: For demo data, take a pot measurement through pin 1. Cap is
' 0.1uF to +5V; pot is 10k to ground, as shown in BS2 manual RCTIME entry.
getPotVal:              ' Output pot value
  high 1: pause 1       ' Discharge cap on pin 1.
  rctime 1,1,graf       ' Measure charge time (approx. 0-600)
  graf = graf/14        ' Scale to 0-50 approx.
return

' LOADBITPATS: Transfer the bit patterns that make up the bars. Since
' vertical bars are made up of 8 identical bit patterns (e.g.,
' a | bar consists of %10000, %10000, %10000...%10000), we save
' some program memory by repeating each pattern from lookup table
' 8 times. Otherwise, we'd have 32 items in the lookup table instead
' of just 4.
loadBitPats:
serout S_PIN,N9600,[I,CGRAM]    ' Point to character-generator RAM.
for cnt = 0 to 3
  lookup cnt,[0,%10000,%10100,%10101],char      ' Get the bit pattern.
  for row = 0 to 7
    serout S_PIN,N9600,[char]   ' Write the pattern to LCD CG RAM.
  next                                  ' ..row
next                                    ' ..char pattern
return

Summary and Modifications

Modifying the bar-graph code is pretty straightforward. First, set the constant WIDTH at the beginning of the program to the maximum width (in characters) that you want the bar to cover. The maximum value that the bar can display will be 3x WIDTH.

Before a GOSUB barGraph, make sure to position the cursor to the desired starting position on the LCD screen. It's probably obvious, but that position should be WIDTH or more characters from the right-hand edge of the screen, or the bar-graph will wrap around.

Finally, put the value you want to graph into the variable graf and GOSUB barGraph. After the bar graph has been generated, the cursor will be in the next character position after the end of the graph.

The bar graph can be updated pretty rapidly for a nice, animated effect. It's a good idea to turn off the visible cursor when the bar graph is displayed, since the blinking effects and/or ghost images of the rapidly moving cursor can be distracting.
