Complete Product Catalog

Organic LED Displays (OLEDs)

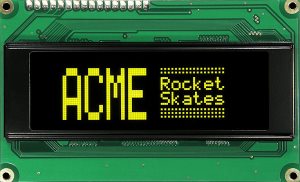

GLO-216

GLO-216Y/G/B 2x16 Serial OLED

Cutting-edge OLED tech for excellent brightness and contrast. Features:

  • Superbright OLED display
  • 9600 - 38,400bps (RS-232, TTL & UART)
  • Multiple font sizes
  • Simple formatting
  • Ultrawide temperature range
GLO-416Y

GLO-416Y 4x16 Serial OLED

Cutting-edge OLED tech for excellent brightness and contrast. Features:

  • Superbright OLED display
  • 9600-38,400bps (RS-232, TTL & UART)
  • Multiple font sizes
  • Simple formatting
  • Ultrawide temperature range

Supertwist (STN) Liquid-Crystal Displays (LCDs)

SGX-120L

SGX-120L Serial Graphics LCD

Serial graphics LCD with LED backlight. Features:

  • 120x32-pixel graphics LCD
  • 9600bps serial: RS-232, TTL & UART
  • Multiple font sizes pluscustom fonts
  • Simple formatting, lines & bitmaps
  • 17-screen onboard memory

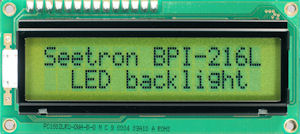

BPI-216N BPI-216NL

BPI-216N/L 2x16 Serial LCD

High-quality LCDs equipped with an easy-to-use serial interface. Features:

  • Supertwist LCD
  • 2400, 9600bps: RS-232, inv. TTL
  • Lowest power needs
  • Super-simple protocol

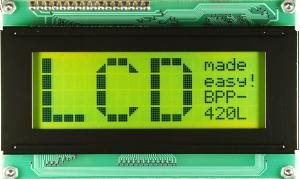

BPP-420L BPP-420VY

BPP-420L/VY 4x20 Serial LCD

High-quality LCDs equipped with an easy-to-use serial interface. Features:

  • Four-line Supertwist LCD
  • 2400, 9600bps: RS-232, inv. TTL
  • Easy control-character protocol
  • Automatic large-character mode
  • Available in normal & inverse LCD
BPP-440L BPP-440L BPP-440L

BPP-440L 4x40 Serial LCD

Sharp FSTN LCD with white LED backlight. Features:

  • 9600bps serial: RS-232, TTL & UART
  • User-configurable startup screen
  • Big-character mode
  • Easy control-code protocol

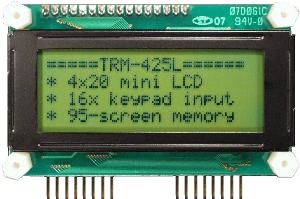

TRM-425L

TRM-425L 4x20 Serial LCD+

Mini 4x20 LCD with LED backlight and keypad input. Features:

  • Compact 4x20 backlit LCD
  • 1200-9600bps serial in
  • Matrix keypad input up to 16 keys
  • 95-screen user-configurable memory
  • Mounting kit included

Vacuum Fluorescent Displays (VFDs)

VFD-220

VFD-220 2x20 Serial VFD

2x20 Serial VFD with Startup Screen. Features:

  • Cool-blue Noritake VFD screen
  • 2400, 9600bps: RS-232, inv. TTL
  • User-configurable startup screen
  • Screen saver, auto bargraphs
  • Easy control-code protocol
VFD-420

VFD-420 4x20 Serial VFD

4x20 Serial VFD with Startup Screen. Features:

  • Cool-blue Noritake VFD screen
  • 2400, 9600bps: RS-232, inv. TTL
  • User-configurable startup screen
  • Screen saver, auto bargraphs
  • Automatic large-character mode
  • Easy control-code protocol

Serial Interface for non-Seetron LCDs

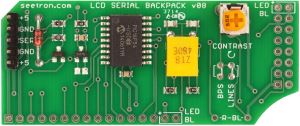

BPK-000

BPK-000 Serial Backpack

This serial interface converts a text-mode LCD to serial. Not Required for Seetron displays; only for parallel (HD44780 or KS0066) types.

  • Use with text LCDs up to 4x20
  • 2400, 9600bps: RS-232, inv. TTL
  • Chips available for OEM integration

Display Accessories (Mounting Kits and Wiring)

Mounting kits for displays

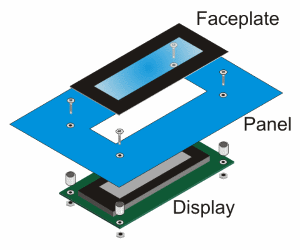

BEZ-series Mounting Kits

Kits contain a self-adhesive Lexan faceplate plus all required hardware to mount a display. Faceplates are also available separately; you supply the hardware.

Wiring for displays

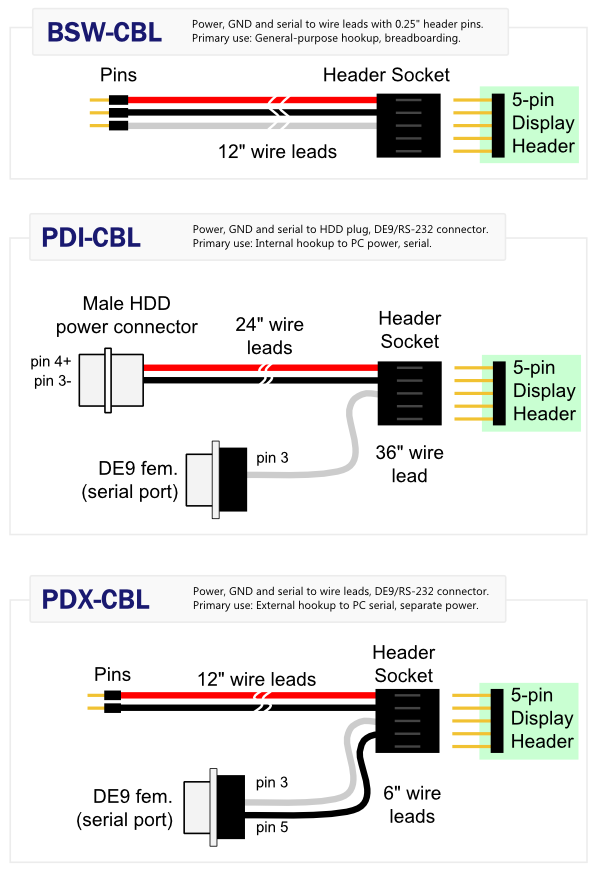

-CBL series Wiring Harnesses

All of our displays (except TRM-) connect power and serial through a 5-pin header. We offer three quick-connect wiring harnesses:

  • BSW-CBL: 5-pin connector to 12" wires
  • PDI-CBL: 5-pin connector to DE9, HDD power connector
  • PDX-CBL: 5-pin connector to DE9 (RS-232) connector, wires

Modified and Semicustom Products

Semicustom products

Semicustom Products

Customers sometimes request hardware mods or firmware tweaks. This category currently contains:

  • BGL-216Y (2x16 OLED, BPI-emu, yellow)
  • BGL-216G (2x16 OLED, BPI-emu, green)
  • BPI-216N-Durrmod (BPI-216N w/ red LED, special wiring)
  • BPP-420FW (BPP420, FSTN LCD, white LED bklt)
  • GLO-416Y-WTN (GLO-416Y w/ctrl-B mod)
  • BPP-000-420 (BPP-420 interface, no LCD)
